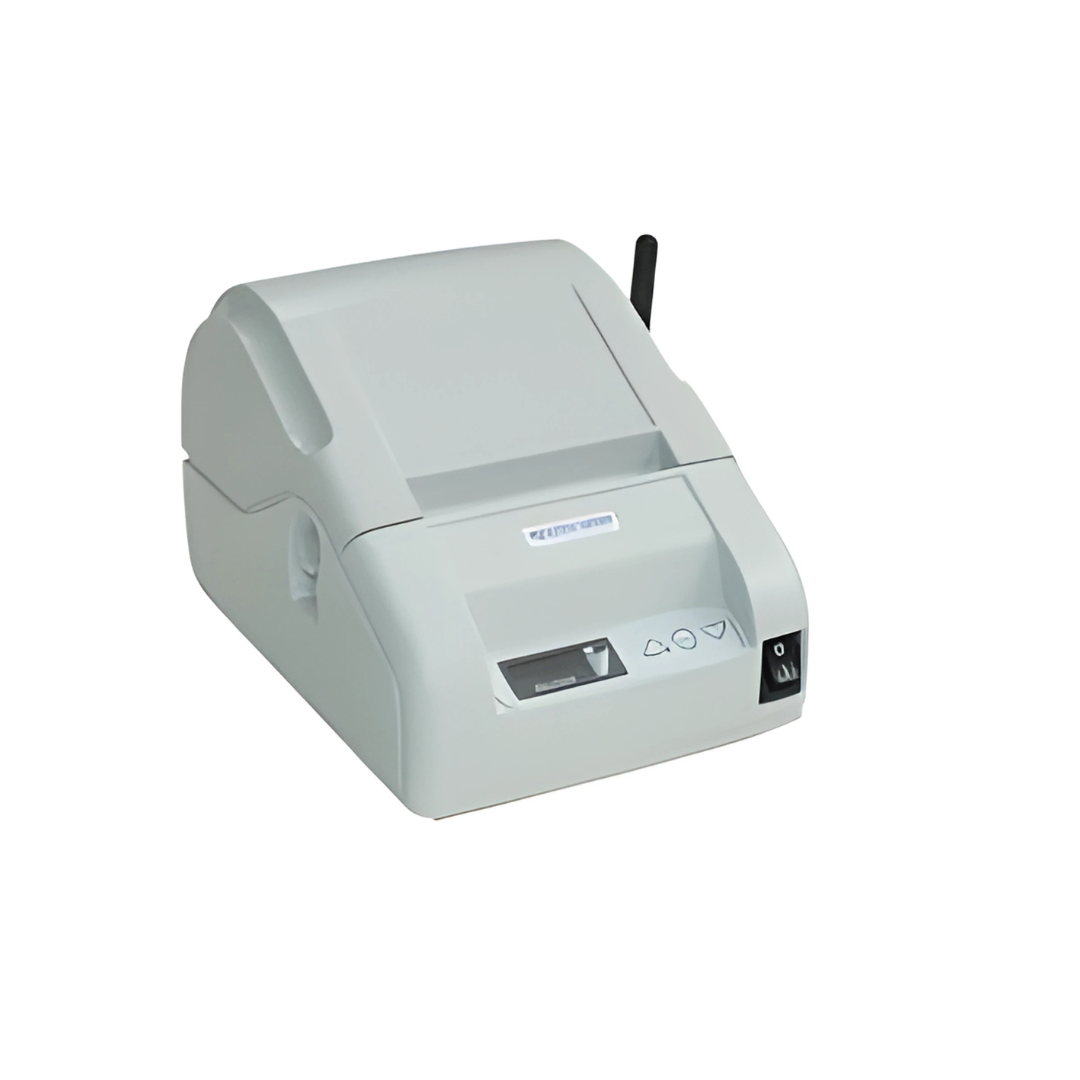

Incotex 300SM Type B Control Unit

Functional characteristics:

• The fiscal printer supports the communication protocols and data transfer between electronic fiscal devices and KRA server
• The fiscal printer is PKI compatible and supports RSA 2048 bit encryption/ decryption algorithm base on TPM 0 FIPS 140-2 certified hardware
• The fiscal printer sends each fiscal receipt to KRA server
• Receipts, reports and messages in English
• HS codes are supported
• Up to 8 VAT categories
• • Micro SD memory card (16 GB)
  • Built-in real-time clock
  • Integrated Control unit (CU)
    • Cryptographic module TPM 0, FIPS 140-2 Level 2 certified
    • Internet capable: Wi-Fi, Ethernet, 3G – option
  • USB, two RS232
  • Power supply through an external adapter

  Input: 100-240V AC, 50-60 Hz; Output: 24V DC, 2.5A

  • A lithium battery supporting the real time clock
  • Dimensions ( mm): 130 x 180 x 120
  • Mass (grms): 770
  • Operation temperature range: from 0° to 45° С
• The device supports update over the air from the manufacturer server of:
  • PKI certificates, keys and security updates
  • HS Codes table
  • VAT table
  • SSL version
  • Device firmware and OS
• Hardware tamper protection from unauthorized interventions
• 8 departments
• 3300 articles
• 15 types of payment
• 10 units of measure
• 3 operators
• Programmable receipt header – 8 text lines
• Programmable receipt footer – 2 text lines
• Graphic logo – 576 x 100 pixels
• Registrations of discounts
• Registration of received on account and paid-out amounts
• Registrations of credit notes and debit notes
• QR code is generated and printed for each invoice
• The integrated Control Unit performs the functions of tax invoices validation, encryption, signing, transmission and storage
• Daily X report and Daily Z report
• Periodic reports:
  • by daily Z report numbers
  • by dates – detailed and
• Extraction of encrypted invoice data
• Communication with a PC, an external display and a cash drawer
• Built-in diagnostic tests
