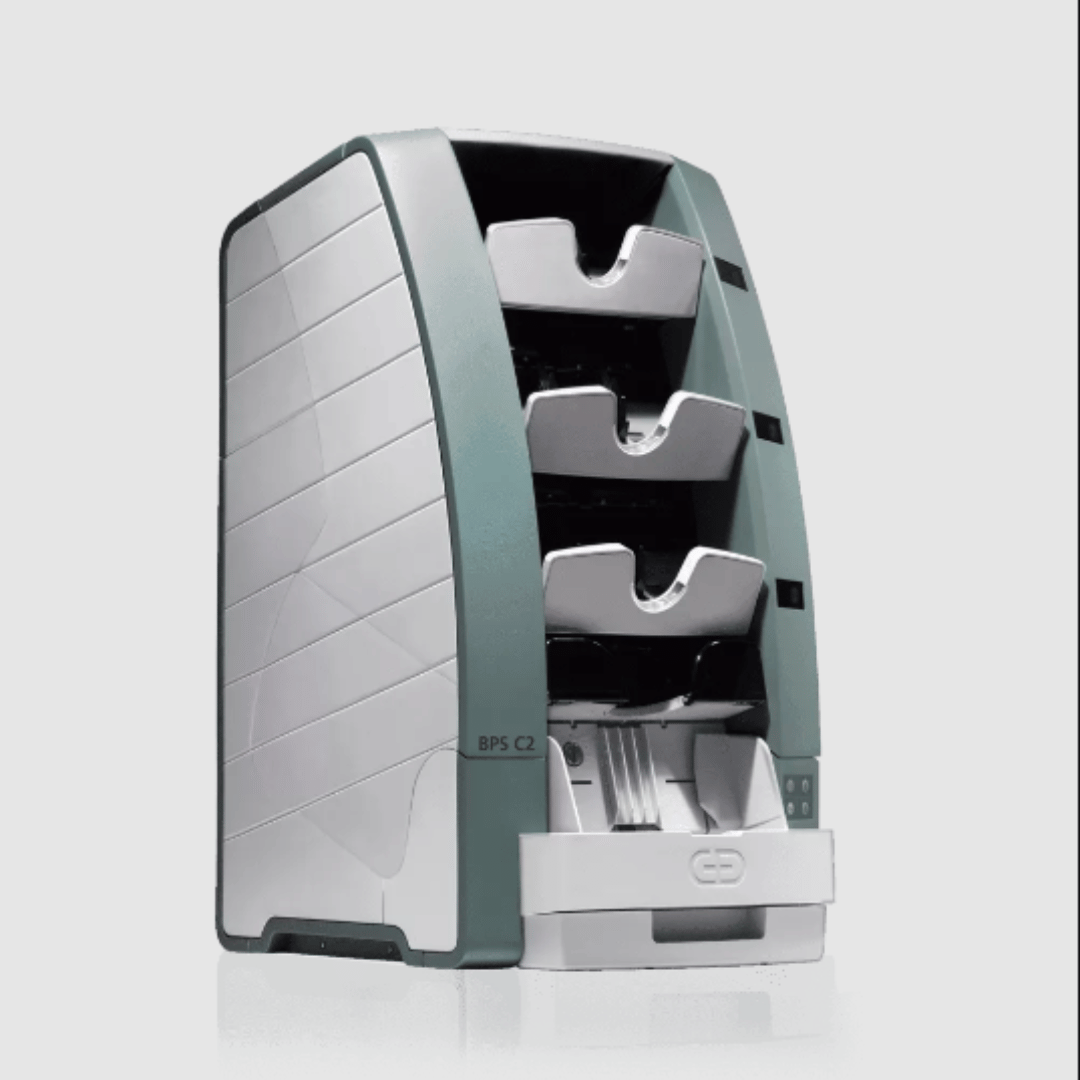

BPS® C2-3 Outstanding Performance – Advanced Flexibility

Banknotes can be processed efficiently and cost-effectively with the latest generation of table-top systems from G+D. Three delivery compartments mean very flexible sorting options. Consistently high throughput of 1,050 banknotes per minute ensures superior productivity, and best-in-class sensors guarantee maximum reliability during authentication and fitness detection. All of this makes the BPS C2-3 the ideal solution for commercial banks, cashin-transit companies, and casinos which want to combine peak performance with a high level of flexibility

Description

Enhanced variability and efficiency, for future-fit processes

GREATER PRODUCTIVITY

Breathtakingly fast: Consistently high throughput of up to 1,050 BN/min enables significantly enhanced productivity in banknote processing. The high speed of the BPS C2-3 remains unrestricted whether authenticating, or sorting by value, orientation, or fitness. What’s more, the user-oriented operator guidance keeps the number of work steps to a minimum.

GREATER SECURITY

Reliable and precise: The very best sensors are used in the BPS C2-3. Their absolute reliability in identifying counterfeits and sorting for fitness means these machines set new standards for com[1]pact table-top systems. They can also read serial numbers when needed.

GREATER EASE-OF-USE

Simplified to what’s most important: Both the ergonomic system design and the clear user interface ensure easy and intuitive operation. The system can also be very easily adapted to specific requirements.

GREATER FUTURE VIABILITY

Open for future developments: Numerous possible interfaces allow the BPS C2-3 to integrate perfectly into the respective system landscape. The potential for connected cash processing can be unlocked to the maximum extent using cutting-edge tools, applications, and web services. The result: even more efficient and cost-effective processes

TECH FACTS
Speed
1,050 BN/min
BN formats (Length × Width)
100 – 181 × 60 – 85 mm
Currencies
up to 10 currencies
Singler capacity
(depending on BN quality)
up to 900 BN
Output compartment capacity
(depending on BN quality)
up to 250 BN
Reject compartment capacity
(depending on BN quality)
up to 100 BN
Dimensions (H × W × D)
62 × 33 × 43 cm
Weight
~ 32 kg
Temperature range
15 – 35° C
Electrical specifications
100 – 240 VA, 50/60 Hz
External connections
1 × LAN, 4 × USB host, 1 × USB device
Certificates
